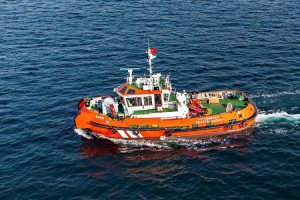

TUG BOAT 2000 SERIES

Tug Boat 2000 Series is configured as conventional twin-screw tug boat. The vessel is designed by Robert Allan to perform ship-assist, harbour tug duty, construction support, etc With a significantly low air draft and a shallow navigational draft there are few places inaccessible to these tugs. 2000 Series can be configured for the maximum bollard pull of 27 tons.

2000 Series outfitted to high standards in a compact space for crew of up to 4 people. The lower accommodation deck consists of a combined mess and pantry, two double crew cabins with a shared en-suite. The wheelhouse is designed for maximum all-round visibility from the forward control station, with conventional helm controls.

GENERAL FEATURES
BASIC FUNCTIONS Towing, Pushing, Harbour Duties
CLASSIFICATON BV I • Hull • Mach Coastal Area
SPEED (SERV/MAX) 11.0 / 12.0 knots
BP (SUSTAINED/MAX) 24 / 27 tons
DIMENSIONS
LENGTH OVERALL 20,00 m
BEAM OVERALL 7,60 m
DEPTH AT SIDES 3,30 m
DRAFT (DESIGN/MAX) 3,00 / 3,40 m
FUEL OIL CAPACITY 25.000 liters
F. WATER CAPACITY 2.900 liters
SEWAGE CAPACITY 2.000 liters
MACHINERY
MAIN ENGINE Caterpillar C32
POWER 2x 1000 hp @ 1800 rpm
GEARBOX 2x Twindisc 5:1
PROPULSION Kaplan Type FPP in Nozzles
AUX. ENGINE 2x 35 kW Triphase
VENTILATION 220V 24000 m3/h
AIR CONDITIONING 4x Chilled Water System
EQUIPMENT
GMDSS AREA A1
NAVIGATION SET Furuno / Sailor
LIFE SAVING Viking Life Saving
FIRE FIGHTING Aerosol Fixed Fire Extinguisher
PUMPS CEM Pumps
ANCHORAGE 1x 150 kgs HHP Anchor
WINDLASS Data Hydraulic 3 ton
